CAS 220426-92-6｜Fluorine-Containing Functional Monomer M-6FDAP Boosts Iterative Upgrading of HighPerformance Polyimide Materials

In the fields of 5G/6G high-frequency communication, flexible displays, advanced semiconductor packaging and optoelectronic chips, conventional aromatic polyimides have long been plagued by industrial pain points such as insufficient dielectric performance, dark-colored films, difficult photolithographic processing and performance degradation under hot-humid conditions. Custom-designed fluorine-containing functional diamine monomers have become a core approach to break through the performance ceiling of materials. CAS 220426-92-6, chemical name 2,2-bis(3-(3-aminobenzamido)-4-hydroxyphenyl)hexafluoropropane, abbreviated as M-6FDAP (HAFA), is a distinctive electronic-grade diamine monomer integrating hexafluoroisopropylidene structure, ortho-hydroxyl groups, amide linkages and terminal diamine groups. It delivers unique molecular design solutions for high-performance photosensitive polyimides and thermally-rearranged benzoxazole-based polyimides.

Basic physicochemical parameters of M-6FDAP: molecular formula C₂₉H₂₂F₆N₄O₄, molecular weight 604.51. It-appears as white to pale-yellowish solid powder. Electronic-grade product achieves purity above 99.5 % with metal ions controlled at ppm levels, complying with impurity-control standards for semiconductor-grade materials. Within the molecule, the hexafluoropropane unit provides bulky -CF₃ groups; amide bonds serve as flexible linkers; ortho-hydroxyl groups act as reaction sites for thermal rearrangement; and terminal aromatic amino groups offer reactive sites for polymerization with dianhydrides. The co-existence of multiple functional groups constitutes its core distinction from conventional fluorinated diamines such as 6FAP and TFDB.

At the molecular-mechanism level, benefiting from the low polarizability and steric-hindrance effect of fluorine atoms, the hexafluoroisopropylidene moiety weakens intermolecular charge-transfer complexation, suppresses yellowing of polyimide films and improves visible-light transmittance. Meanwhile, it expands the free volume of polymers, reduces water-absorption rate and mitigates humidity interference on dielectric parameters. Amide groups on molecular chains improve compatibility between the monomer and polymerization systems and enhance resin solubility to enable solution-based processing. Most notably, hydroxyl groups adjacent to amide moieties in the monomer can undergo thermal-rearrangement cyclization under high-temperature nitrogen atmosphere at approximately 425 °C to form benzoxazole ring structures. This further boosts polymer thermal stability, dimensional stability, solvent resistance and hydrolysis resistance, realizing in-situ conversion from polyimide to benzoxazole systems. It represents the most differentiated technical advantage of M-6FDAP.

In terms of polymerization and processing properties, M-6FDAP can homopolymerize or copolymerize with mainstream dianhydride monomers including 6FDA, BPDA and BTDA to prepare photosensitive polyimide (PSPI) matrix resins. Side-chain hydroxyl groups interact with photosensitive components to endow resins with alkali-developable performance compatible with TMAH photolithography processes. Massive additional photosensitive auxiliaries are not required, simplifying photoresist formulation systems. The obtained precursor resins exhibit favorable solubility in organic solvents and can be formulated into high-solid-content glues suitable for spin-coating and solution-casting. They feature broad processing windows and excellent film uniformity, substantially raising yields of downstream films and coatings. Subjected to dual processes of thermal imidization and thermal-rearrangement cyclization after film formation, the materials show markedly elevated thermal-decomposition temperature, decreased coefficient of thermal expansion (CTE), and simultaneously improved mechanical strength and chemical resistance. It balances processability and ultimate high-temperature resistance and resolves the common dilemma of “poor processability” for many high-performance polymers.

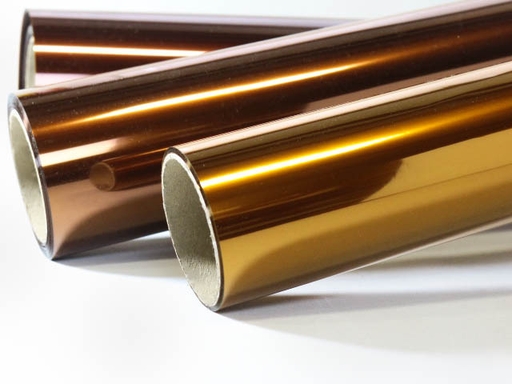

Downstream applications cover multiple high-end tracks. First, photosensitive polyimide photoresists for semiconductors, applied as chip passivation layers, buffer coatings and redistribution-layer dielectrics. They combine photolithographic patterning capability, high-temperature resistance and low impurity content to meet requirements of advanced-packaging processes. Second, high-frequency communication substrates. Thermally-rearranged modified films deliver lower dielectric constant and dielectric loss. Their dielectric properties suffer little fluctuation against frequency and humidity within high-frequency millimeter-wave bands for high-frequency flexible copper-clad laminates and high-speed-signal transmission film layers. Third, flexible optoelectronic displays. High-transmittance, low-yellowing PI films are adopted for OLED backplanes and flexible cover-substrates. Fourth, special separation membranes. Benzoxazole polymers generated via rearrangement possess rigid pore structures for manufacturing temperature-resistant and organic-solvent-resistant permeation separation membranes. Additional applications include aerospace-grade special insulating coatings, radiation-resistant materials and special adhesive matrices.

Regarding storage and quality control: M-6FDAP is moderately sensitive to air. It shall be hermetically stored in cool, dry and inert environments to avoid oxidation and moisture uptake. Standard packaging uses fiber drums lined with light-proof and moisture-proof inner bags with a 24-month shelf-life. Electronic-grade products implement strict control over heavy-metal and halogen residues. Special impurity-test reports are available for semiconductor-oriented customers.

Domestic high-end electronic-polymer materials are undergoing accelerated localization. Previously, such thermally-rearranged fluorinated hydroxyl-containing diamines were long reliant on overseas imports with long lead times and high costs. After stable mass-production of M-6FDAP, it supplies alternative core-monomer raw materials for domestic research institutes and new-material enterprises. It supports local players to develop self-owned intellectual-property photosensitive PI and thermally-rearranged benzoxazole materials, breaks overseas barriers in material patents and raw-material supply, and pushes the domestic industrial chains of semiconductor photolithographic dielectrics, high-frequency communication films and flexible-display substrates toward upstream key intermediates.

Overall, M-6FDAP is more than an ordinary fluorinated diamine. It is a molecular-platform monomer integrating polymerization, photolithographic processability and thermal-rearrangement cyclization functions. Relying on its unique hydroxyla-mide-hexafluoro composite structure, it achieves balance among four dimensions hardly reconciled by conventional polyimides: photolithographic processability, high transparency, low dielectric property and ultra-high thermal stability. With continuous upgrading of domestic advanced electronic manufacturing, this monomer will play an increasingly vital role in next-generation high-performance polymer-material sectors.
